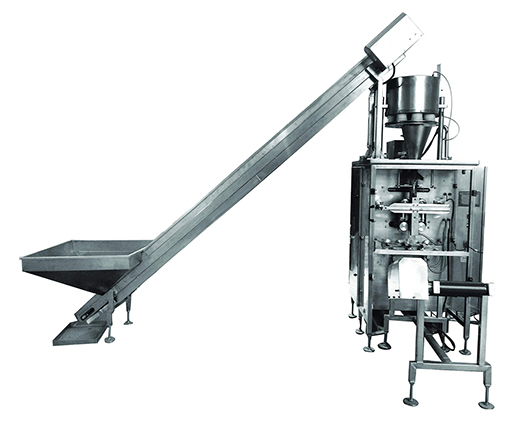

Packaging Machine SERVO 1000P

Specifications:

• Suitable for packaging: Pizza cheese , olive , wet yeast , powder
Liquids such as mayonnaise, ketchup, tomato paste, hotmelt glue
Solid and liquid ingredients such as canned olives, soups, pickles
Solid ingredients in the form of powder, granules, frozen vegetables, IQF, pizza cheese
• Capacity: 2000 pouch 1 liter per hour
• Volume of Packaging: 2 ml up to 1 liter
• Sealing System: Servo Motor
• System Controller: PLC
• Possibility for connection to CIP unit
• Chassis, Electrical cabinet and parts that contact by liquid is made by stainless steel

Equipment:

• Film disinfection by U.V
• Adjusting film design by electrical-eye
• Heat coding printer for printing production and expiry dates
• Balance tank for injection liquid
• Alarm system and stopping operation when film is finished
• Alarm system and stopping operation when printing ribbon is finished
• Preheating system for deleting wastes in starting packaging
• Changing parameters by touch screen

Technical Data:

• Dimension: 110*100*270 cm (Length*width*height)
• Weight: approximately 500 Kg
• Electricity consumption: 2 KW/ hr
• Compressed air consumption: 80 Lit/min (at 6 bar)
• Cooling Water consumption for sealing jaws: 100 Lit/hr (15 up to 20 centigrade degree)

Film Specifications:

• Material: one or three layers Polyethylene
• Thickness: 90 up to 110 micrometers
• Width: 33 cm
• Diameter of roll: Max. 30 cm
• Weight of 1 liter pouch: 7 gm

Selected items:

• Weighing or Auger (spiral) filling system
• Packing in three-layer polyethylene and one-layer LDPE roll
• Different sizes of packaging with a change of tube and collar

.
